Bench-Mart SR - Retail Greenhouse

Check Below for Pricing
Brand Name:
Poly-Tex
Availability:
Call 1800-852-3443 to order
Quantity:

Product Description

You’ll capitalize on spring plant sales with this space-efficient, modular structure. Designed with additional side benching, this greenhouse fits an enormous amount of product in the length of just one parking space (about 18’). Additional benefits include superior strength, easy expansion options, and SNAP2000™ connector design for simplified, tool-free set-up. Jump-start your sales season with the affordable Bench-Mart SR system.

Integrated Plant Displays:
Bench-Mart SR comes with display benching built in.

Hang Your Baskets:
Easy open, ten foot wide entry provides access and ventilation.

Natural Ventilation:
Slide-Side ventiation is easy to use so you can make sure your customers are comfortable.

Features

Wiggle Wire®



Used on thousands of greenhouses, Wiggle Wire has proven to be a
low-cost, effective system to attach polyethylene or shade material to greenhouses. Quick and easy to use, the Wiggle Wire attachment system requires no tools.


Click here for more information


Roof & End Wall Polyethylene





A choice of clear 6 mil. roof polyethylene with clear poly on
the end walls. Our poly coverings are UV stabilized, and come with
a four-year limited warranty.

Click here for more information

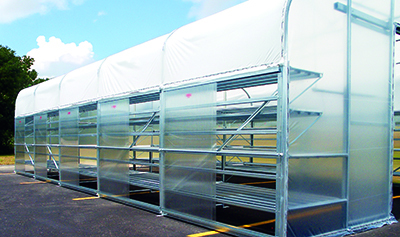

Natural Ventilation






Slide-Side ventilation is easy to use and will keep your customers
comfortable and happy in all weather conditions.


Hold Down Systems






This inexpensive reusable hold down system for the Garden Mart, Smart-Mart and Bench-Mart SR is quick and easy to install and will protect your structure from high winds.


Double Sliding End Door








A wide six-foot opening allows easy access to the Bench-Mart SR for
your customers and carts. Covered in durable, twin-wall polycarbonate
they stand up to the rigors of a busy retail environment.


Center Benching Brackets

Tiered bench tops: The tiered bench top arrangement is one of the options for the center benching in your Garden Mart. They come in either roll-form or expanded metal style. The tiered arrangement consists of three bench tops, 18”, 23” and 36” in depth. This option creates a cascade of color and allows for more light to reach all of your product. It leaves you with a slightly smaller aisle (4’6”) and can hold 21 flats per each side of a 6-foot section.

Flat Stacker bench tops: The flat stacker bench top arrangement is one of the options for the center benching in your Garden Mart. They come in either roll-form or expanded metal style. The flat stacker arrangement consists of four 18” bench tops ‘stacked’ in a row. This option gives you a wide aisle (6’) and can hold 24 flats per each side of a 6-foot section.


Options

Bench-Mart SR 4' Side Door Package






Provide easy customer access to outdoor display areas
and improve customer flow.


Add $436 each


Additional end door






Create additional avenues for customer traffic.


Add $436 each


Roof & End Wall Polyethylene





A choice of clear 6 mil. roof polyethylene with clear poly on the end walls. Our poly coverings are UV stabilized, and come with a four-year limited warranty.


Shade Cloth




Various percentages of knitted shade cloth are available from 30% - 90%.


Click here for more information


Wiggle Wire®



Used on thousands of greenhouses, Wiggle Wire has proven to be a
low-cost, effective system to attach polyethylene or shade material to greenhouses. Quick and easy to use, the Wiggle Wire attachment system requires no tools.


Click here for more information


Inflation Kit


Our pre-assembled roof inflation kit creates an insulating dead air space between a double layer poly roof for greater energy efficiency and visual appeal. Gives you that nice tight, even poly look. Includes blower, heavy-duty mounting bracket, flex tube and air-transfer gaskets.

Click here for more information

Accessories



Garden center sign holders:
Heavy-duty, galvanized sign holders provide easy pricing and identification of your garden center products.



Click here for more information




Replacement Parts

Replacement Slide-Side Panels

Keep your Garden Mart® looking new with replacement Slide-Side panels.
Made from clear 8mm polycarbonate, these tough panels will keep your
plants and customers happy.

Part #
Discription
Price
SS1005
GM/BMSR 36" x 55-1/4"
Slide-Side panel
$34.00
GMSA50
GM2000 Divider (sheet metal)
$23.00
GMSA51
GM2000 End Cap (left or right)
$22.00
GMSA52
GM2000 Slide Bar (no hdwe)
$11.00



Roof & End Wall Polyethylene

A choice of clear 6 mil. roof polyethylene with clear poly on
the end walls. Our poly coverings are UV stabilized, and come with
a four-year limited warranty.

Click here for more information


Wiggle Wire®

Used on thousands of greenhouses, Wiggle Wire has proven to be a
low-cost, effective system to attach polyethylene or shade material to greenhouses. Quick and easy to use, the Wiggle Wire attachment system requires no tools.


Click here for more information


Expanded Metal Retro Kit

This easy to install, galvanized retrofit kit will transform your standard 6' roll-form bench top into a versatile surface to display smaller plants and other gardening products. Kit includes expanded metal cut to size, (2) trim strips and (6) self-drilling screws.

Part #
Discription
Price
FK4000
12" x 6' expanded metal kit
$13.00
FK4004
18" x 6' expanded metal kit
$20.00
FK4008
24" x 6' expanded metal kit
$26.00
FK4012
36" x 6' expanded metal kit
$33.00



Galvanized Bench Tops

Galvanized roll-form bench tops are available in 4 different widths and are designed to fit inside the Garden Mart perfectly. Standard bench tops are great displaying flats and trays. Upgrade to expanded metal if you need to display smaller items or hard goods.


Part #
Discription
Price
RF2545
12" x 6' roll-form bench top
$33.00
RF2554
18" x 6' roll-form bench top
$38.00
RF2555
23" x 6' roll-form bench top
$44.00
RF2552
36" x 6' roll-form bench top
$57.00

FK1004
12" x 6' expanded metal bench top
$55.00
FK1000
18" x 6' expanded metal bench top
$63.00
FK1003
23" x 6' expanded metal bench top
$68.00
FK1002
36" x 6' expanded metal bench top
$89.00



Inflation Kit


Our pre-assembled roof inflation kit creates an insulating dead air space between a double layer poly roof for greater energy efficiency and visual appeal. Gives you that nice tight, even poly look. Includes blower, heavy-duty mounting bracket, flex tube and air-transfer gaskets.

Click here for more information

Hold Down Systems

This inexpensive reusable hold down system for the Garden Mart, Smart-Mart and Bench-Mart SR is quick and easy to install and will protect your structure from high winds. (4) Water Tubes are recommended.

Part #
Discription
Price
GM18WT
GM-18 16" x 22' water tube
$22.69
GM24WT
GM-24 16" x 28' water tube
$29.00
GM30WT
GM-30 16" x 34' water tube
$35.00
GM36WT
GM-36 16" x 40' water tube
$41.20
GM42WT
GM-42 16" x 46' water tube
$47.38
GM48WT
GM-48 16" x 52' water tube
$54.00
GM54WT
GM-54 16" x 58' water tube
$60.00
GM60WT
GM-60 16" x 64' water tube
$66.00
GM66WT
GM-66 16" x 70' water tube
$72.00
GM72WT
GM-72 16" x 76' water tube
$78.35
GM78WT
GM-78 16" x 82' water tube
$84.00
GM84WT
GM-84 16" x 88' water tube
$91.00
GM90WT
GM-90 16" x 94' water tube
$96.95
GM96WT
GM-96 16" x 100' water tube
$103.00








Pricing

Size
Benching
area
Flat capacity
(1020 style)
Basket capacity
(10-inch baskets)
Package Price
w/standard bench tops
Package Price
w/expanded metal bench tops
17' x 24'
432 sq. ft.
288
154
$6,466
$7,511
17' x 30'
576 sq. ft.
384
184
$7,894
$9,298
17' x 36'
720 sq. ft.
480
214
$9,322
$11,086
17' x 42'
864 sq. ft.
576
244
$10,750
$12,874
17' x 48'
1,008 sq. ft.
672
274
$12,178
$14,662
17' x 54'
1,152 sq. ft.
768
304
$13,605
$16,449
17' x 60'
1,296 sq. ft.
864
334
$15,033
$18,237
17' x 66'
1,440 sq. ft.
960
364
$16,461
$20,025
17' x 72'
1,584 sq. ft.
1,056
394
$17,889
$21,812
17' x 78'
1,728 sq. ft.
1,152
424
$19,317
$23,600
17' x 84'
1,872 sq. ft.
1,248
454
$20,744
$25,388
17' x 90'
2,016 sq. ft.
1,344
484
$22,172
$27,175
17' x 96'
2,160 sq. ft.
1,440
514
$23,600
$28,963
6' addt'l. sections
144 sq. ft.
96
30
$1,428
$1,788
Prices are subject to change. Additional configurations are available. Please call for a quote.

Specifications

Width

17'

Door

(2) 3' wide x 6'-8" tall

Length

24 to 96 feet (in 6-foot increments)

Roof cover

clear 6 mil. UVI treated polyethylene

Sidewall height

6 feet

End wall cover

clear 6 mil. UVI treated polyethylene

Height at apex

10'-6"

Frame

1.66" O.D. 16 gauge galvanized steel tubing

Frame spacing

6 foot

Ventilation

Slide-Side



Product Reviews

Write Review

This product hasn't received any reviews yet. Be the first to review this product!

Find Similar Products by Category

Warranty Information

Support
You can download the setup manual below . You will need the free Adobe Acrobat Reader to view these files.

Bench Mart SR (1mb)
If you need additional technical support or have a question not answered here, we can be reached 8 AM to 4:30 PM central time,
Monday through Friday at:

Phone: 800-852-3443 (toll-free US and Canada) or 651-463-7009

FAX: 651-463-2479
